开口挡圈 (摘自GB 896-86)

2016-03-29 10:14:28

大央紧固件 温州大央紧固件有限公司
Share
  • Share to WeChat Moments

开口挡圈 (摘自GB 896-86)

开口挡圈 (摘自GB 896-86) 孔径d=1.2~15mm的开口挡圈。 标记示例: 孔径d=6mm、材料为65Mn、热处理硬度HRC47~54、经表面氧化处理的开口挡圈的标记:
挡圈 GB 896 6  孔径d=1.2~15mm的开口挡圈:
挡圈
公称直径d B S D≤
基本 尺寸 极限 偏差 基本 尺寸 极限 偏差 基本 尺寸 极限 偏差
1.2 0 -0.14 0.9 ±0.08 0.3 -0.03 3
1.5 0 -0.14 1.2 ±0.125 0.4 -0.03 4
2 0 -0.14 1.7 ±0.125 0.4 -0.03 5
2.5 0 -0.14 2.2 ±0.125 0.4 -0.03 6
3 0 -0.14 2.5 ±0.125 0.6 -0.03 7
3.5 0 -0.18 3 ±0.125 0.6 -0.03 8
4 0 -0.18 3.5 ±0.15 0.8 -0.06 9
5 0 -0.18 4.5 ±0.15 0.8 -0.06 10
6 0 -0.18 5.5 ±0.15 1 -0.08 12
8 0 -0.22 7.5 ±0.18 1 -0.08 16
9 0 -0.22 8 ±0.18 1 -0.08 18
12 0 -0.27 10.5 ±0.215 1.2 -0.08 24
15 0 -0.27 13 ±0.215 1.5 -0.09 30

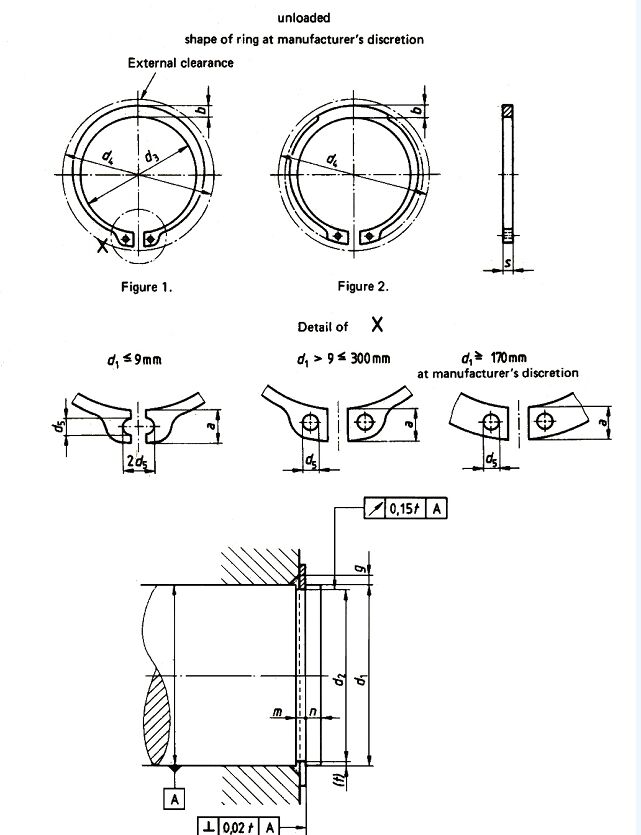

沟槽(推荐) 轴径 d0
d2 m n ≥
基本 尺寸 极限 偏差 基本 尺寸 极限 偏差
1.2 +0.06 0 0.4 +0.14 0 1 >1.5~2
1.5 +0.06 0 0.5 +0.14 0 1 >2~2.5
2 +0.06 0 0.5 +0.14 0 1.2 >2.5~3
2.5 +0.06 0 0.5 +0.14 0 1.2 >3~3.5
3 +0.06 0 0.7 +0.14 0 1.2 >3.5~4
3.5 +0.075 0 0.7 +0.14 0 1.5 >4~5
4 +0.075 0 0.9 +0.14 0 1.5 >5~6
5 +0.075 0 0.9 +0.14 0 1.5 >6~7
6 +0.075 0 1.1 +0.14 0 1.5 >7~9
8 +0.09 0 1.1 +0.14 0 1.8 >9~10
9 +0.09 0 1.1 +0.14 0 2 >10~13
12 +0.11 0 1.3 +0.14 0 2.5 >13~16
15 +0.11 0 1.6 +0.14 0 3 >16~20
沟槽(推荐) 轴径 d0
d2 m n ≥
基本 尺寸 极限 偏差 基本 尺寸 极限 偏差
1.2 +0.06 0 0.4 +0.14 0 1 >1.5~2
1.5 +0.06 0 0.5 +0.14 0 1 >2~2.5
2 +0.06 0 0.5 +0.14 0 1.2 >2.5~3
2.5 +0.06 0 0.5 +0.14 0 1.2 >3~3.5
3 +0.06 0 0.7 +0.14 0 1.2 >3.5~4
3.5 +0.075 0 0.7 +0.14 0 1.5 >4~5
4 +0.075 0 0.9 +0.14 0 1.5 >5~6
5 +0.075 0 0.9 +0.14 0 1.5 >6~7
6 +0.075 0 1.1 +0.14 0 1.5 >7~9
8 +0.09 0 1.1 +0.14 0 1.8 >9~10
9 +0.09 0 1.1 +0.14 0 2 >10~13
12 +0.11 0 1.3 +0.14 0 2.5 >13~16
15 +0.11 0 1.6 +0.14 0 3 >16~20
开口挡圈 (摘自GB 896-86)开口挡圈 (摘自GB 896-86)
文章整理由挡圈,轴用挡圈,钢丝挡圈,温州挡圈直销供应商温州大央紧固件有限公司整理发布、了解详情请电话咨询手机:13958859071
